| Place of Origin: | Shanxi |
| Brand Name: | GY LED Lighting |
| Certification: | CE ,ROHS ,ISO |
| Model Number: | GY230GB |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotation |
| Packaging Details: | Carton |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union/Paypal |
| Supply Ability: | 200000PCS/YEAR |
| Lamp Power(w): | 45W | Power Factor: | ≥0.9 |
|---|---|---|---|
| Lighting Efficiency: | 90lm/w | Luminous Flux: | 4050lm |
| Input Voltage: | AC220 ～ 240V | Color Rendering Index: | Ra70 |
| Color Temperature: | 3000/4000/5000/5700K | IP Rating: | IP65 |
| Material: | Die Casting Aluminum Alloy | Ambient Temperature: | -40 ～ 50℃ |
| Electric Safety Class: | CLASS I | Body Weight: | 4.5kgs |
| Warranty Period (years): | 3 Years | Beam Angle: | 120° |
| Body Dimensions: | 230×230×193mm | ||
| Highlight: | 45w explosion proof led canopy lighting,pf0.9 explosion proof led canopy lighting,ce explosion proof led canopy lighting |
||
| Technical Parameter | |
| Input Voltage(V) | AC100~240V |
| Model | GY230GB45/220AC |
| Power(W) | 45 |
| Luminous Flux(lm) | 4500 |
| Light Efficiency(lm/W) | 100 |
| Power Factor | ≥0.9 |
| CRI | 70 |
| Color Temperture(K) | 3000/4000/5000/5700K |
| IP Rating | IP65 |
| Ambient Temperture(℃) | -40~50℃ |
| Operating Humidity(RH) | 0~90% |
| Net Weight(Kg) | 4.5 |

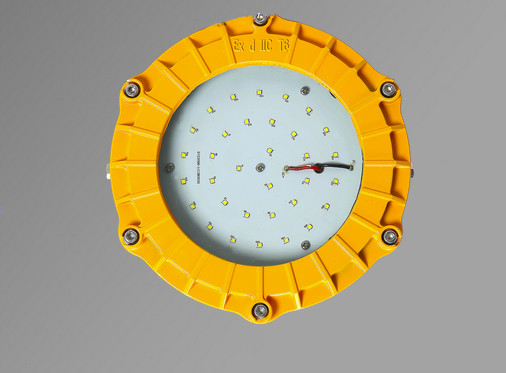

The housing adopt to the die-casted with aluminum alloy material, and is processed by high-tech spraying, which is wear-resistant, corrosion-resistant, waterproof and dustproof.

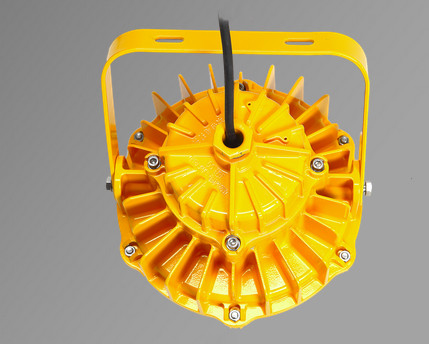

Reasonable structural design greatly increases the heat dissipation area, reduces the temperature rise and improves the service life of the light source.
The high-power LED light source with independent research and development integrated package is adopted, which has high color rendering index, high luminous efficiency and long service life. Equipped with a specially designed light distribution system, uniform illumination.

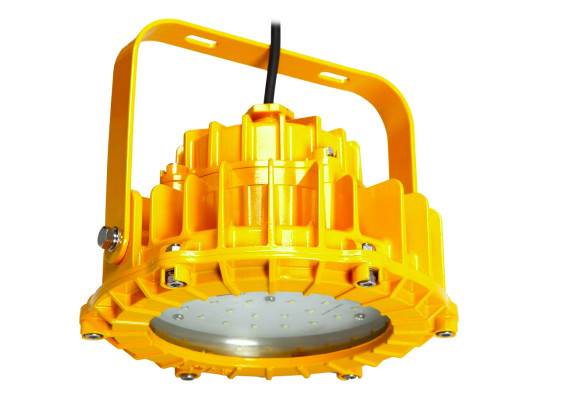

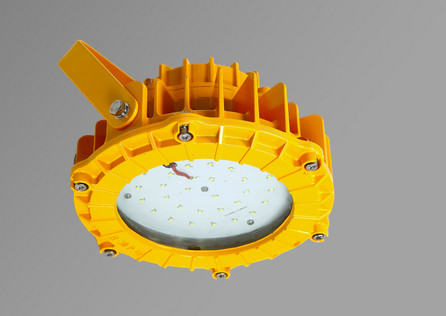

The light is equipped with a U-shaped mounting bracket for easy installation and operation.
| No. | Name | No. | Name |
| 1 | G3/4 compression nut, G3/4 pipe threaded hanger installation | 4 | Driver |
| 2 | Mounting bracket | 5 | Heat Sink |
| 3 | Terminals | 6 |
PCB |
Scope of application
Scope of application: GY230GB series LED factory operation lamps are suitable for safety lighting in flammable and explosive atmospheres such as petroleum and chemical industry.
Explosive gas environment hazardous places: Zone 1, Zone 2;
Explosive atmosphere: II A, II B; temperature group: T1 ~ T6; explosion-proof mark: Exd II CT6.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Shipment
Seaport: Tianjin, Shanghai or Shenzhen
Production time:
The prepare time for item for samples is 7-10 days
The production time for normal order is 10-20 days
Others:
All the items will be test before shipment.
All the goods are sent from China for now.
All the order will be shipped by DHL, TNT, FedEx, or By sea, by air etc.
Estimated Time of arrival is 5-10 days by express, 7-10 days by air or 10-60 days by sea.
