| Place of Origin: | Shanxi |
| Brand Name: | GY LED Lighting |
| Certification: | CE ,ROHS ,ISO |
| Model Number: | GY1141LD |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotation |
| Packaging Details: | Carton |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union/Paypal |
| Supply Ability: | 300000pcs/Year |
| Power: | 180-260W | Input Voltage: | AC100～240V |
|---|---|---|---|
| Power Factor: | ≥0.95 | Color Temperature: | 3000K/4000K/5000K/5700K |
| Luminous Flux: | 90Lm/W/100Lm/W | Color Rendering Index: | ＞70 |
| IP Rating: | IP65 | Electrical Insulation Grade: | CLASS I |
| The Maximum Rated Temperature: | 50℃ | Dimension: | 1076×422×215mm |
| Weight: | 16.7kg | ||
| Highlight: | 150W Urban Street Lights,3000K Urban Street Lights,CE Outdoor Led Street Lights |
||
Main performance and parameters
| No. | Parameter | Unit | Numerical value | Remark |
| 1 | Input voltage | V | AC100～240 | |
| 2 | Power factor | ≥0.95 | ||
| 3 | Hz | Hz | 50/60 | |
| 4 | Power | W | 180～260 | |
| 5 | Color temperature | K |
3000(3045±175) 4000(3985±275) 5000(5028±283) 5700(5665±355) |
| 6 | Luminous flux | lm | Execute according to the contract | |
| 7 | Color rendering index | / | ＞70 | |
| 8 | LED working voltage | V | 30～35 | |
| 9 | IP rating | / | IP65 | |
| 10 | Electrical insulation grade | / | CLASS I | |
| 11 | The maximum rated temperature | ℃ | 50 | |
| 12 | Dimension | mm | 1076×422×215 | |
| 13 | Weight | kg | 16.7 | |
| 14 | Applicable diameter of light pole | mm | Φ70 orφ80 |
| Module | cup/box | Five-layer carton dimension(mm) | ||
| length | width | height | ||
| GY1141LD | 1 | 1135 | 265 | 480 |

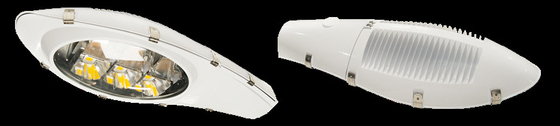

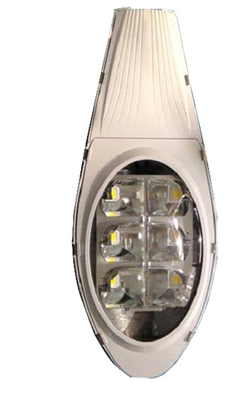

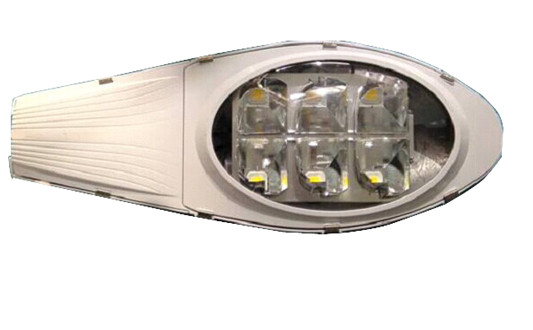

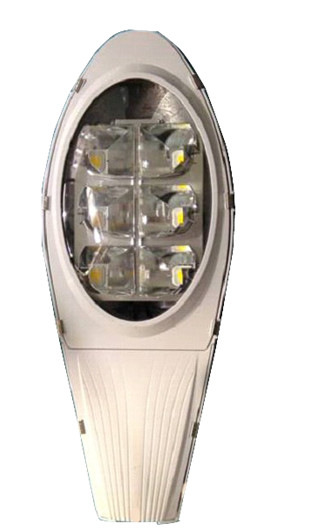

Features
1) Adopt high power and integrated packaging LED light source with independent intellectual property rights, equip light distribution system with invention patent and tempered glass with ultra white high-permeability fabric, conform to the light pole spacing ratio 3.5:1, adapt to any angle of lamp-post elevation from 0 to 20°, these conditions make the range of exposure, illumination, and uniformity of the street light completely satisfied the demand of City road lighting design standards.
2) Adopt integrated design of the radiator and lamp shell, LED directly and closely connect with lamp shell, shell heat dissipation wing and air convection provide LED street light’s 50000 hours life span with adequate assurance. Its’ life span could be more than 10 years by 12 hours working time every day and low maintain fee vastly.
3) Lamp shell is made of aluminum alloy formed through die-casting. Light source cavity separating with power supply cavity makes it better effect of heat dissipation, waterproof and dustproof. IP 65. Lock design to seal is convenient to interchange parts.
4) LED lamp uses high penetration light, high-strength tempered glass and aluminum, solid and reliable, with high luminous efficiency and lifelike visual effect, no strobe and convenient to transportation.
5) Start quickly, it can normally work and without waiting as soon as connecting electricity, can be added to a variety of wireless dimmer control interface.
6) It is green and environmental, doesn’t contain harmful elements such as mercury and lead, and high stability achieved green, environmental protection and energy saving lighting in the true sense.
7) There are vertical and horizontal installation methods, easy and flexible. Lamp pole interface is Φ70/Φ80.
Application
LED Street light of GY1141LD Series can be used in city streets, pavements, squares,
schools, parks, yards, residential areas, factories and any other places that outdoor lighting
is needed.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Shipment
Seaport: Tianjin, Shanghai or Shenzhen
Production time:
The prepare time for item for samples is 7-10 days
The production time for normal order is 10-20 days
Others:
All the items will be test before shipment.
All the goods are sent from China for now.
All the order will be shipped by DHL, TNT, FedEx, or By sea, by air etc.
Estimated Time of arrival is 5-10 days by express, 7-10 days by air or 10-60 days by sea.
Company Profile
Aina-4 Technologies (Shanghai) Co., Ltd. is a private limited company registered in Shanghai, China. It specializes in the R&D, design, manufacture, and marketing of light emitting sources and lighting fixtures. It is an enterprise formed by four (4) pioneer lighting companies, putting their resources together to produce products and services that create sustainability not only for the environment, but also for the economies and societies that the company grows with.
FAQ
Q: How to find us?
A: WhatsApp /Skype/ Viber: +86 15989493560 or WeChat: 15989493560
Q: Are you factory?
A: Yes, Our factory is Aina lighting.
Q: How can I get the sample to check your quality?
A: After price confirmation, you can require for samples to check. The samples fee you paid will be return to you when there is formal orders step by step.
Q: How can I get your price?
A: We will send you quotation within 24 hours after getting your inquiry. If you need price urgent, you can find us any time by WhatsApp or WeChat or Viber
Q: What is your delivery time
A: For samples, normally will take around 5 days. For Normal order will be around 10-15 days
Q: What about the trade terms?
A: We accept EXW, FOB Shenzhen or Shanghai, DDU or DDP. You can choose the way which is the most convenient or cost effective for you.
Q: Can you add our logo on the products?
A: Yes, we can offer service of adding customers’ logo.
Q: Why Choose us?
A: We have three factories in different places focusing one different type of lights. We can offer more lighting choices for you.
We have different sales office, can offer you more Awesome services.
